CR 10-5 A-FJ-A-E-HQQE
Grundfos CR juga dikenal sebagai pompa yang dioptimalkan secara energi. Dengan memenuhi standar indeks efisiensi minimum (MEI) Uni Eropa sebesar MEI ≥ 0.70, pompa ini tidak hanya menghemat energi, tetapi juga mengurangi dampak lingkungan. Dilengkapi dengan motor IE3/IE4 berkualitas premium, memastikan penggunaan energi yang efisien dan ramah lingkungan.
Price
Product name
Product No
EAN number
CR 10-5 A-FJ-A-E-HQQE
96500967
5700396212692
Liquid
Pumped liquid
Liquid temperature range
Selected liquid temperature
Density
Water
-20 .. 120 °C
20 °C
998.2 kg/m³
Technical
Pump speed on which pump data are based
Rated flow
Rated head
Maximum head
Stages
Impellers
Number of reduced-diameter impellers
Low NPSH
Pump orientation
2899 rpm
10 m³/h
40.7 m
51.1 m
5
5
0
N
Vertical
Electrical data
Motor standard
Motor type
Rated power – P2
Power (P2) required by pump
Mains frequency
Rated voltage
Rated current
Starting current
Cos phi – power factor
Rated speed
IE Efficiency class
IEC
90LE
2.2 kW
2.2 kW
50 Hz
3 x 220-240D/380-415Y V
8.00/4.60 A
840-920 %
0.86-0.80
2890-2910 rpm
IE3
Materials
Base
Impeller
Material code
Code for rubber
Bearing
Cast iron
EN 1561 EN-GJL-200
ASTM A48-25B
Stainless steel
EN 1.4301
AISI 304
A
E
SIC
Installation
Maximum ambient temperature
Maximum operating pressure
Max pressure at stated temp
Type of connection
Size of inlet connection
Size of outlet connection
Pressure rating for connection
60 °C
16 bar
16 bar / 120 °C
16 bar / -20 °C
DIN / JIS
DN 40
DN 40
PN 25
Others
Terminal box position
Minimum efficiency index, MEI ≥
Net weight
Gross weight
Shipping volume
6
0.70
52 kg
55 kg
0.104 m³

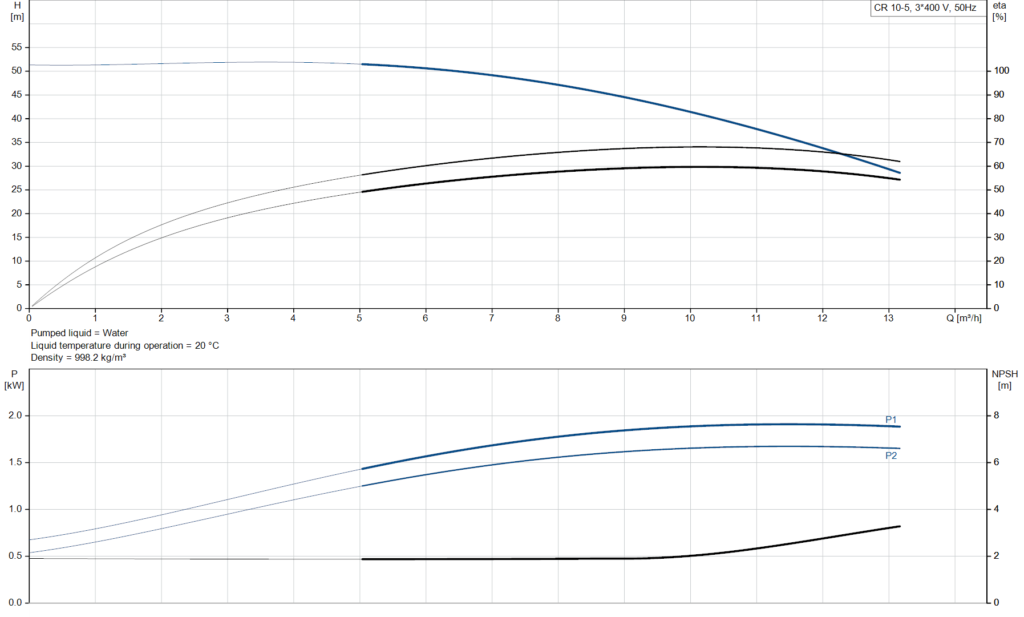

Pump Curve

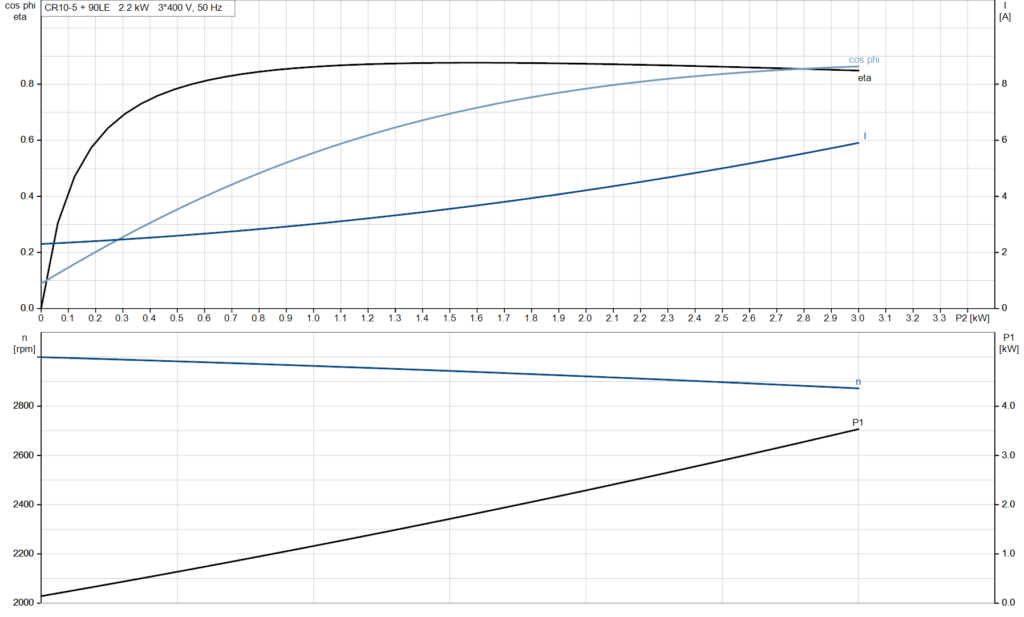

Motor Curve
